DIY REMODEL: KITCHEN BACKSPLASH

﻿
GETTING STARTED

Upgrading a backsplash is a great way to enhance your kitchen and add value to your home. We selected teak wood panels for their natural beauty. Teak is inherently waterproof, making it a good choice for kitchen use. The process to make a kitchen backsplash is easy. We will show you how using a Goldblatt trowel, the Arrow PT23G Pneumatic Pin Nailer and Arrow 23G25-1K 1" Pin Nails. Don’t forget your gloves and safety goggles. State, local and municipal codes for home improvements vary by location, so check the requirements for your area before beginning your residential project.

YOU WILL NEED

PT23G

Pneumatic Pin Nail Gun

BUY NOW

﻿PIN NAILS﻿

23G25-1K (1")

BUY NOW

Other Tools
 G02424 Pro-Grip Notched Trowel
Putty knife
 Hammer
 Level
 Wood shims
 Pen
 Circular saw
 Rags
 Tape measure
 Caulk gun
 Air compressor
 Air hose
﻿


﻿

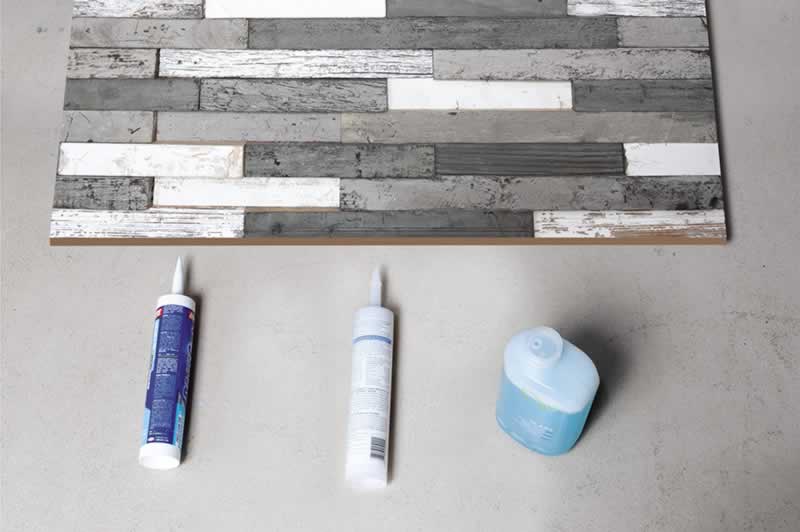

Materials
Aspen Lodge teak 12” x 24” wood panel sheet (12)
 Adhesive
 Clear caulk
 All-purpose cleaner


﻿START REPAIRING﻿
﻿
STEP 1
The existing backsplash will need to be removed before the new backsplash can be installed. We were fortunate that the electrical outlets in the kitchen were located under the cabinets.

﻿
STEP 2

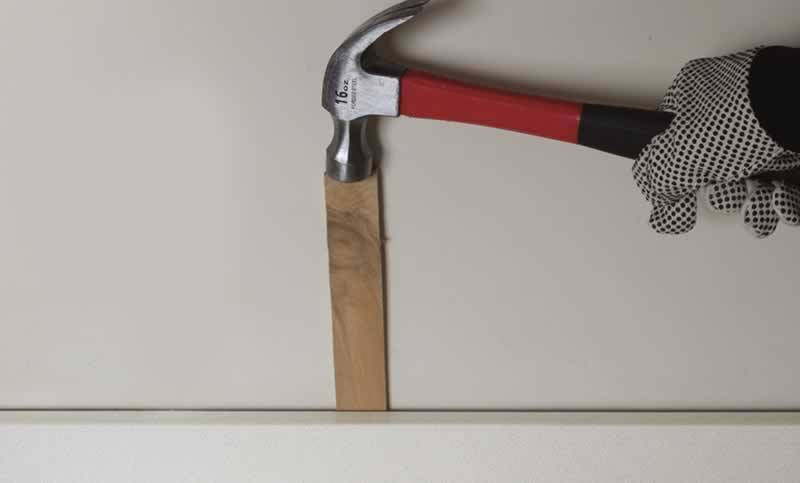

Start at one end of the counter and gently tap a wood shim between the wall and backsplash. The backsplash should move away from the wall as you tap the shim.

STEP 3
Tap another shim between the backsplash and wall approximately 12 – 16 inches away from the previous shim.
﻿
﻿

STEP 4
Gently pull the backsplash away from the wall. Minimize damage by removing the backsplash carefully.

STEP 5
Use a putty knife to remove any excess glue and smooth out any damaged areas on the surface of the wall.

STEP 6
Lightly sand the surface until it is smooth. ARROW TIP: Using a sanding device that includes a hose connected to a shop vacuum will limit the amount of cleanup needed after sanding.

﻿
STEP 7
The wall must be free of dust or grease in order for the backsplash adhesive to adhere. Clean the wall with a rag and all-purpose cleaner and allow enough time for it to completely dry.

﻿
STEP 8

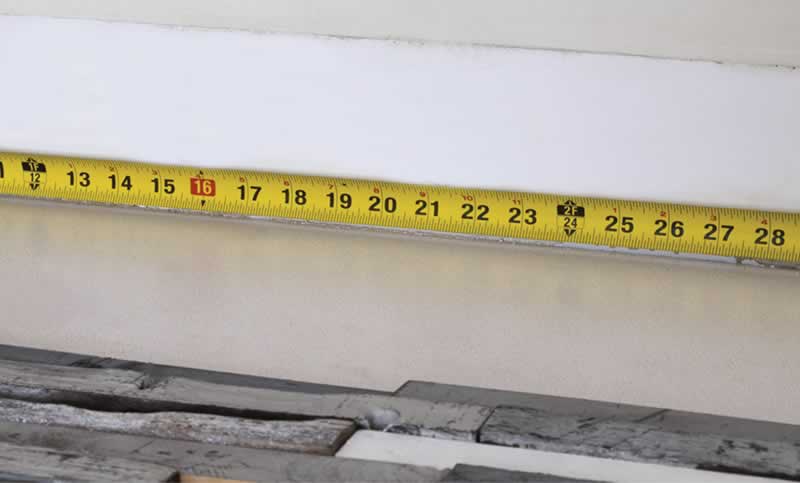

Measure the areas that the replacement backsplash will cover. It is critical to get an accurate measurement, so you know exactly what size to cut your backsplash material.
﻿

﻿
STEP 9
Once the framed pegboard is securely in place, it’s time to decorate! Additional pegboard hooks can be purchased from home improvement stores or online. This is the perfect time to put your own special touch on the project.

STEP 9
Mark the measurements on the Aspen Lodge teak wood panel.

STEP 10
Cut the backsplash material with the circular saw.

STEP 11

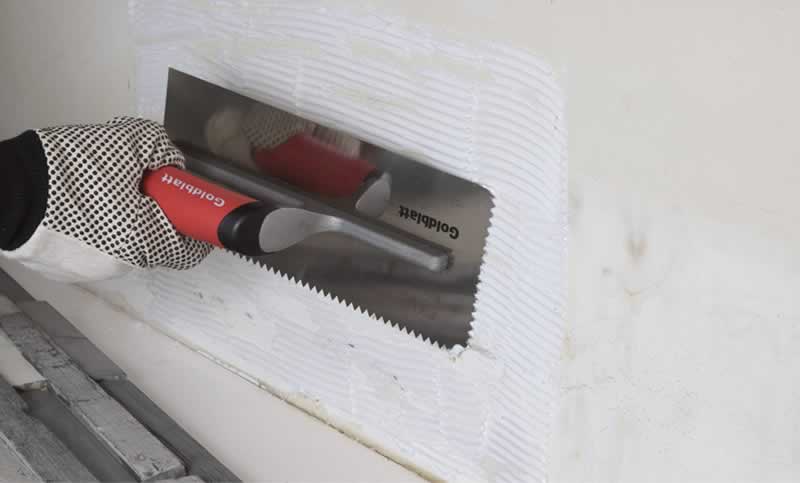

Apply a generous amount of adhesive to the wall. Use the Goldblatt G02424 Pro-Grip Notched Trowel to spread the adhesive evenly across an area that is the same size as the 12” x 24” wood panels.

STEP 12

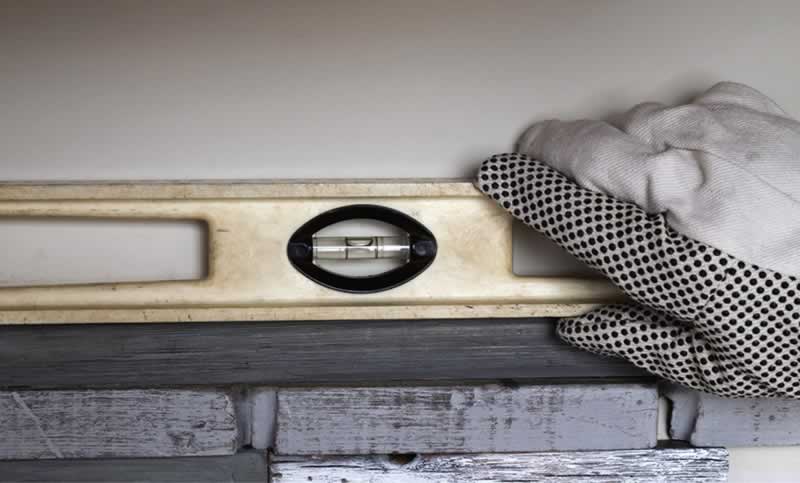

Press the backsplash material onto the adhesive on the wall. Use the level to make sure it is straight.

STEP 13

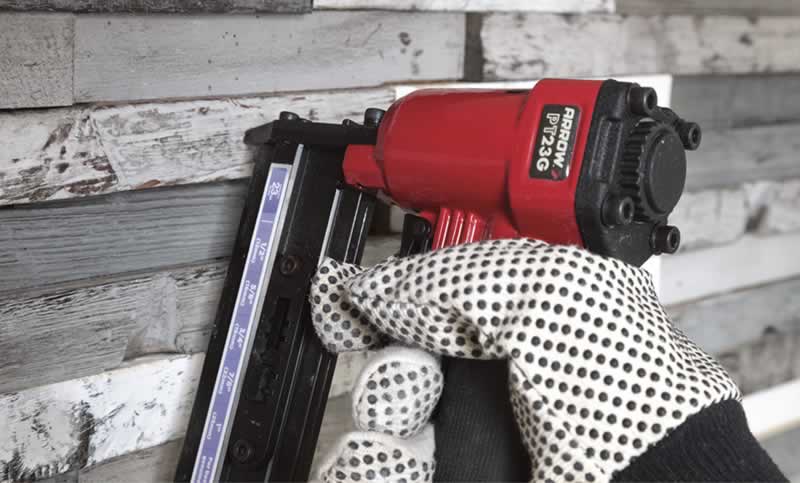

Nail the backsplash to the wall using the Arrow PT23G Pneumatic Pin Nailer and Arrow 23G25-1K 1” Pin Nails. Fire pin nails randomly throughout the 12” x 24” section.

STEP 14
Repeat the process for the remaining sections of backsplash.

STEP 15

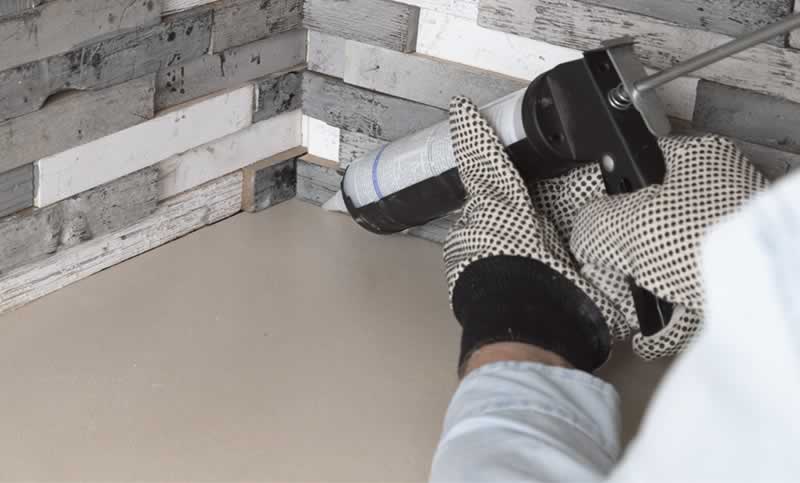

Lastly, apply a fine bead of clear caulk at the junction point of the backsplash and the counter.

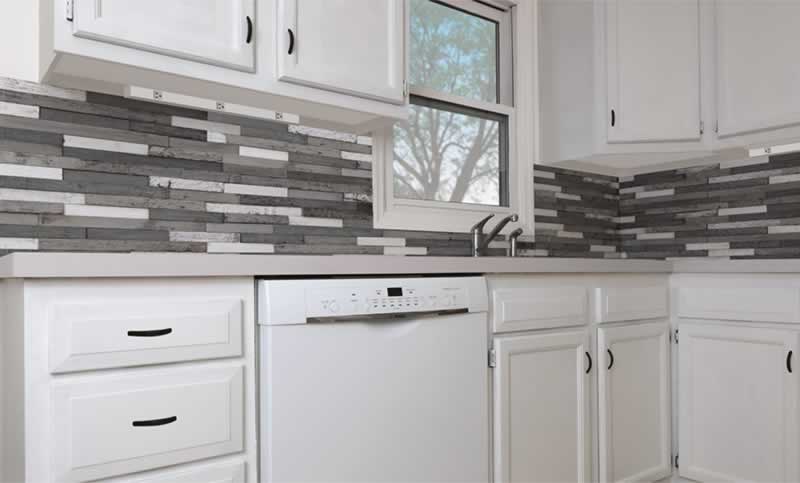

﻿FINISHED PRODUCT﻿

We'd love to see how your upgraded kitchen backsplash turned out!
﻿
Share your work with us on Facebook and Instagram by tagging @ArrowFastener or using #MadeWithArrow.
﻿
